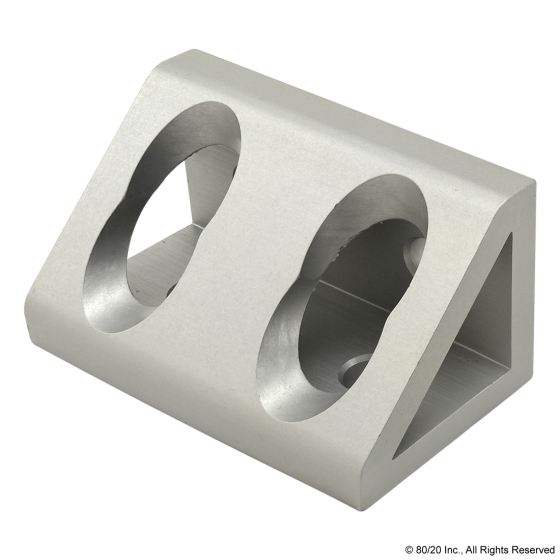

40-4334 - 40 Series 4 Hole - Wide Gusseted Inside Corner Bracket
The 4 hole - wide gusseted inside corner bracket is a strong, external fastening method that creates a 90 degree connection. There are two adjacent holes on each side of the bracket. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The shape of the gusset provides extra material, strengthening the connection. The 4 hole - wide gusseted inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.
USA Made from 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE

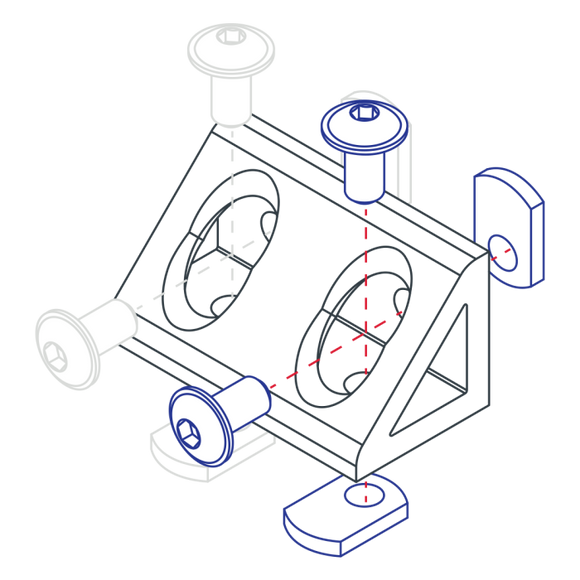

Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 13-8316 | 8 |
M8 x 16.00mm Button Head Socket Cap Screw (BHSCS) |
| 40-1981 | 8 |
M8 Slide-in Economy T-Nut - Offset Thread |
| Series | 40 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| A | 40.00mm |
| B | 40.00mm |
| C | 6.00mm |
| D | 40.00mm |
| E | 20.00mm |
| F | 76.00mm |
| G | 18.00mm |
| H | 20.00mm |
| J | 8.30mm |
| Weight | 0.266000 |
