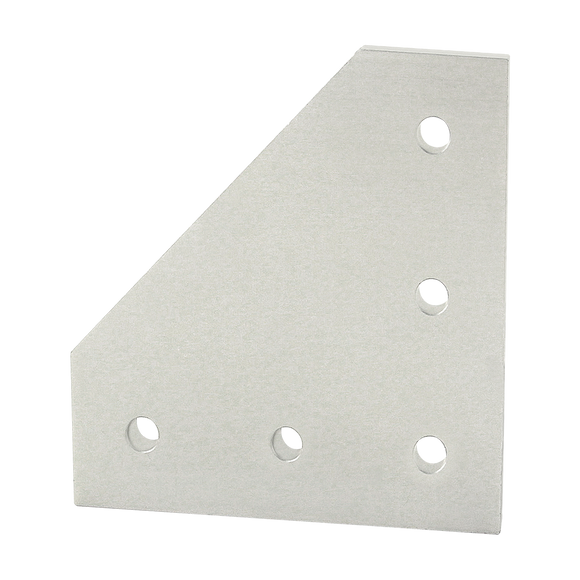

40-4351 - 40 Series 5 Hole - 90 Degree Angled Flat Plate
The 5 hole - 90 degree angled flat plate is an external fastening method that requires no machining services. This flat plate creates a 90-degree angle between profiles and its shape reinforces the strength of the connection. It is a durable option that is easy to assemble and can be reconfigured and reused. The suggested mounting hardware can be found on the "Suggested Hardware" tab. Tip: Use double or triple slide-in economy T-nuts to save time and money. Pre-load your hardware prior to connecting profiles to simplify your assembly.
| Part Number | Qty | Description |
|---|---|---|
| 13-8316 | 5 |
5/16-18 x .687" Flanged Button Head Socket Cap Screw (FBHSCS) |
| 40-1981 | 5 |
5/16-18 Slide-in Economy T-Nut - Offset Thread |
| Series | 40 Series |
| Material | Aluminum |
| Grade | 6005A - T61 |
| Finish | Anodize |
| Color | Clear |
| A | 120.00mm |
| B | 120.00mm |
| C | 40.00mm |
| D | 20.00mm |
| E | 8.30mm |
| F | 6.00mm |
| G | 40.00mm |
| H | 40.00mm |
| Weight | 0.3790 |
