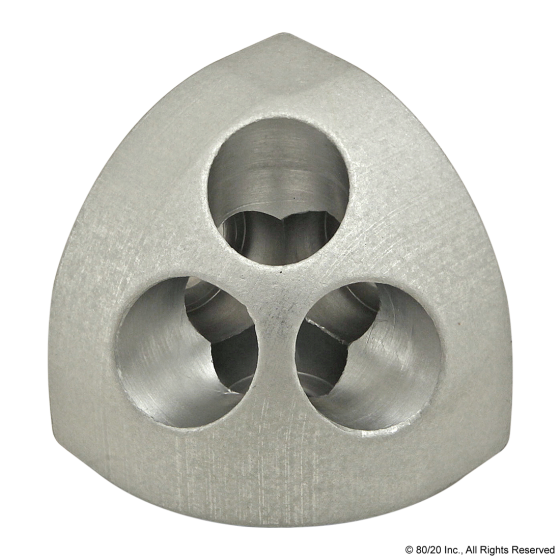

4041 10 Series 3 Way - Rounded Corner Connector
The 3 way - rounded corner connector is an external fastening method that is typically used to create a curved corner connection between quarter round profiles. It is a heavy-duty connection that is simple to use and provides a finished appearance while the rounded corner prevents sharp edges. The 3 way - rounded corner connector requires an end tap machining service on the mating profiles.
Made in USA by 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE
Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 3017 | 3 |
1/4-20 x 1.000" Low Head Socket Cap Screw (LHSCS) |
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| A | 1.000' |
| B | 1.000" |
| C | .750" |
| D | .500" |
| E | .500" |
| F | .406" |
| G | .117" |
| H | .378" |
| J | .244" |
| K | .257" |
| Weight | 0.0490 |
