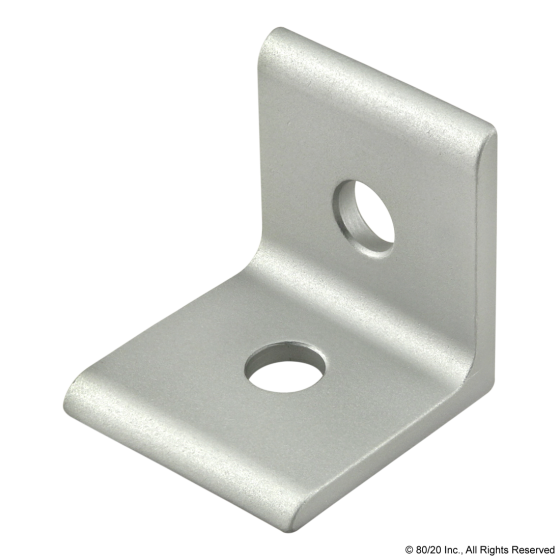

4108 - 10 Series 2 Hole - Lite Inside Corner Bracket

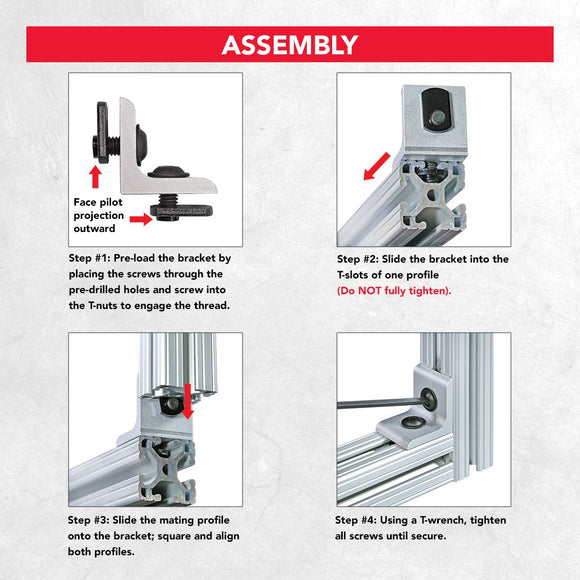

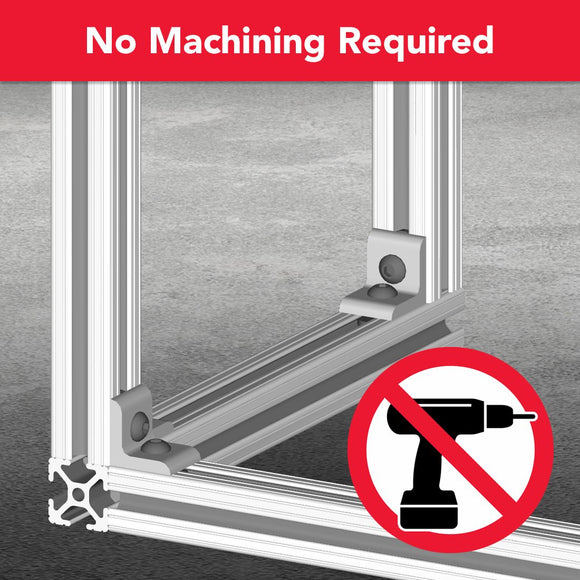

The 2 hole - lite inside corner bracket is an external fastening method that creates a 90 degree connection. It is a lightweight bracket that requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The 2 hole - lite inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.
USA Made from 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE

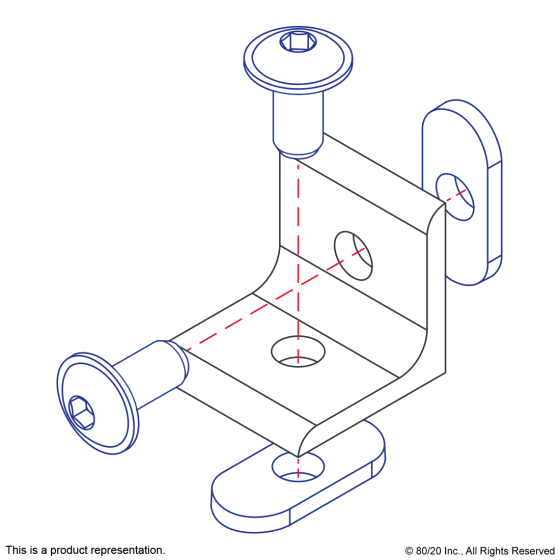

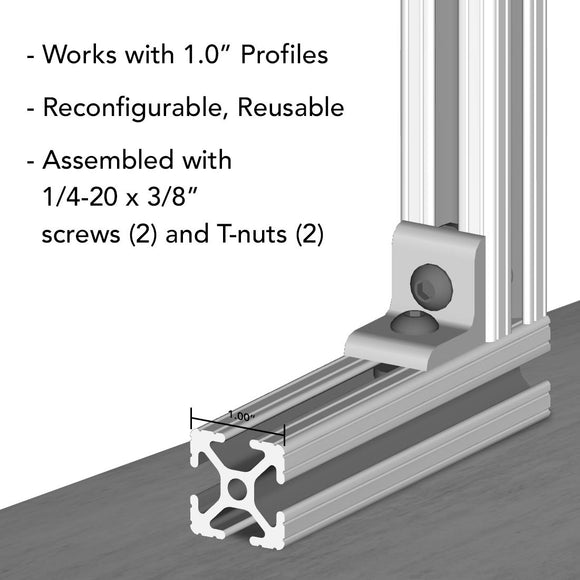

Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 3386 | 2 |
Bolt Assembly: 1/4-20 x .375" Black FBHSCS and Slide-In Economy T-Nut - Centered Thread |
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |

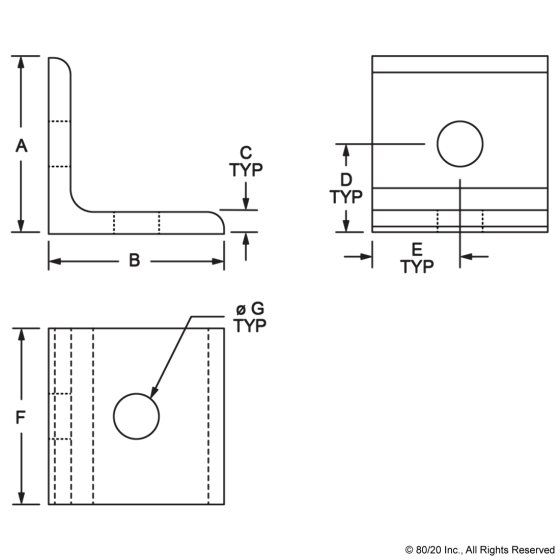

| A | 1.000" |
| B | 1.000" |
| C | .125" |
| D | .500" |
| E | .500" |
| F | 1.000" |
| G | .257" |
| Weight | 0.021000 |
