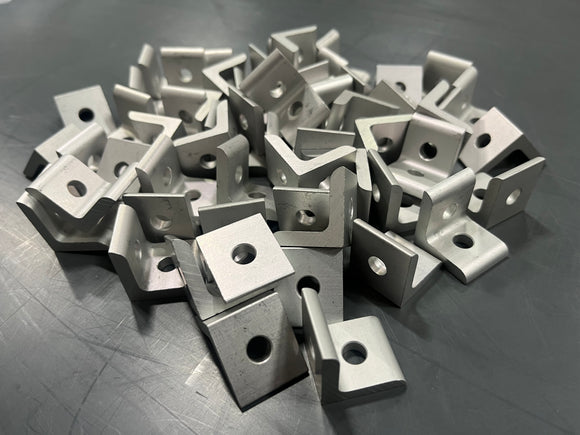

4119-D - 10 Series 2 Hole - Inside Corner Bracket (Off-spec - cosmetic only)
**Note parts will have visual defects, however this is considered cosmetic and are still functional. **
The 2 hole - inside corner bracket is an external fastening method that creates a 90 degree connection. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The 2 hole - inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused. The suggested mounting hardware can be found below.
Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
|
3393 |
2 |
Bolt Assembly: 1/4-20 x .500" Black BHSCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc |
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| A | 1.000" |
| B | 1.000" |
| C | .188" |
| D | .500" |
| E | .438” |
| F | .875” |
| G | .281" |
| Weight | 0.025000 |
