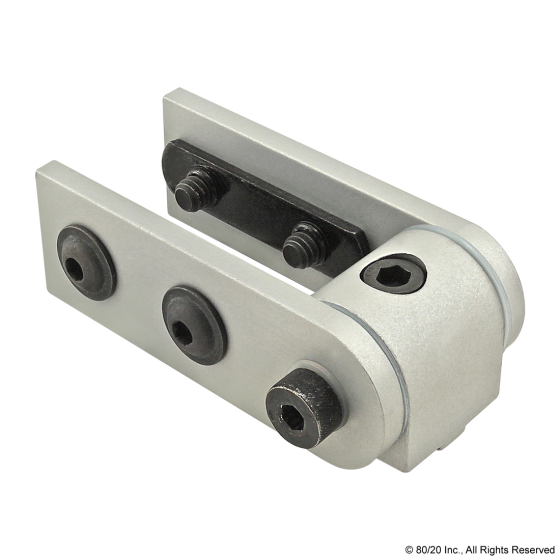

4180 - 10 Series Standard 0 Degree Dynamic Pivot Assembly w/ Dual Straight Arms
The standard 0 degree dynamic pivot assembly with dual straight arms is typically used to create dynamic pivots that are parallel to the mounting profile and have full axial motion ranging from 0-180 degrees. The assembly includes one 0 degree dynamic pivot nub and two standard straight dynamic pivot arms. It has permanently lubricated bronze bushings that act as high-strength pivot points and nylon thrust washers that protect the pivot arms. This assembly offers a high load capacity while ensuring a long life cycle. A shim kit and the hardware to connect the nub to the profile, the nub to the arms, and the arms to the profile are all included.
USA Made from 80/20 Inc
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Nub (Qty.) | 4181 (1) |
| Arm (Qty.) | 4185 (2) |
| A | 1.010" |
| B | 3.010" |
| C | 1.858" |
| D | 1.000" |
| E | 1.000" |
| F | 1.275" |
| Weight | 0.3150 |
