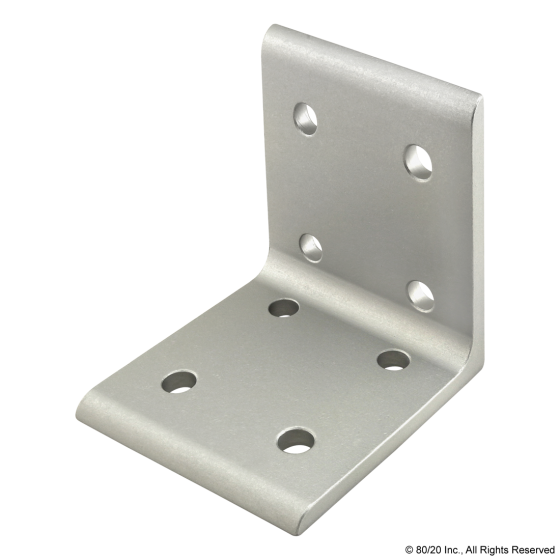

4304 - 15 Series 8 Hole - Inside Corner Bracket
The 8 hole - inside corner bracket is an external fastening method that creates a 90 degree connection and has four holes on each side of the bracket, comprised of two rows and two columns. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The 8 hole - inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.
USA Made from 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE

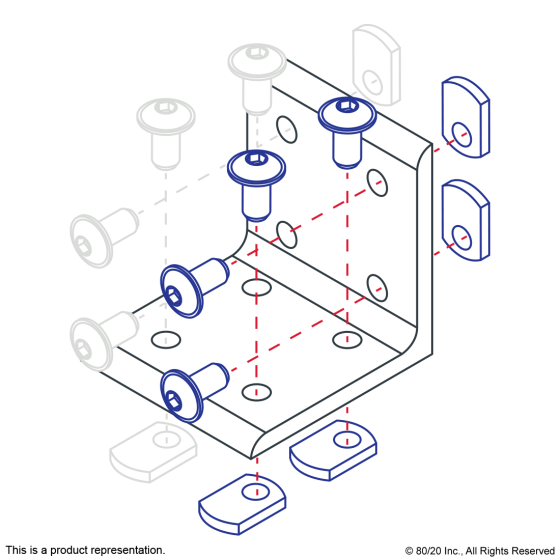

Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 3320 | 8 |
Bolt Assembly: 5/16-18 X .687" Black FBHSCS With Slide-In Economy T-Nut - Offset Thread - Black Zinc |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |

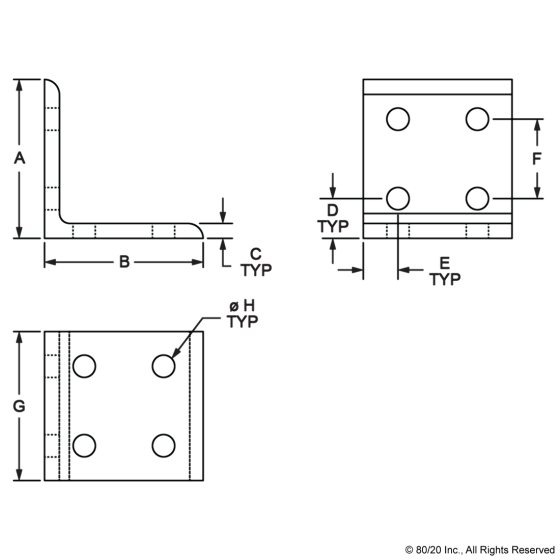

| A | 3.000” |
| B | 3.000" |
| C | .250" |
| D | .750" |
| E | .656" |
| F | 1.500" |
| G | 2.810" |
| H | .328" |
| Weight | 0.3650 |
Suggested Hardware
| Series | Part Number | Qty | Description | |
|---|---|---|---|---|
 |
3320 | 8 |
Bolt Assembly: 5/16-18 x .687" Black FBHSCS with Slide-In Economy T-Nut - Offset Thread - Black Zinc |
