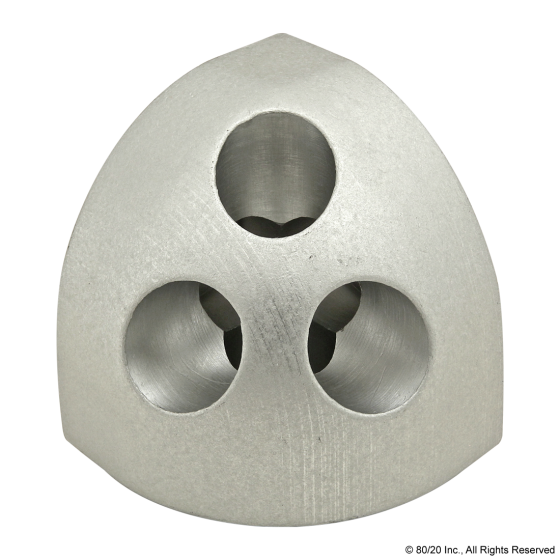

4441 - 15 Series 3 Way - Rounded Corner Connector

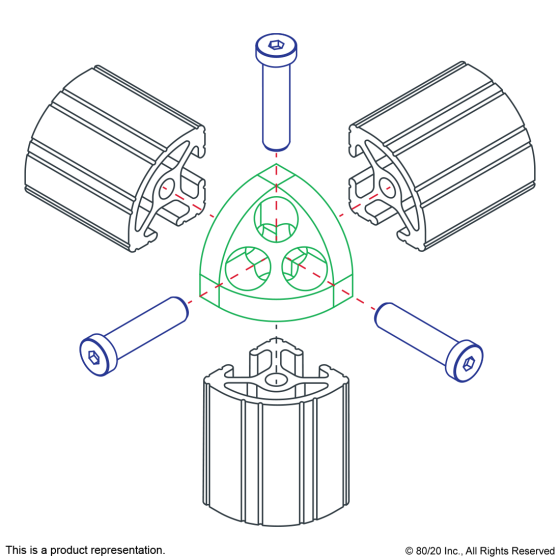

The 3 way - rounded corner connector is an external fastening method that is typically used to create a curved corner connection between quarter round profiles. It is a heavy-duty connection that is simple to use and provides a finished appearance while the rounded corner prevents sharp edges. The 3 way - rounded corner connector requires an end tap machining service on the mating profiles.
USA Made from 80/20 Inc
NOTE: DOES NOT INCLUDE HARDWARE
Suggested Hardware:
| Part Number | Qty | Description |
|---|---|---|
| 3018 | 3 |
5/16-18 x 1.250" Low Head Socket Cap Screw (LHSCS) |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |

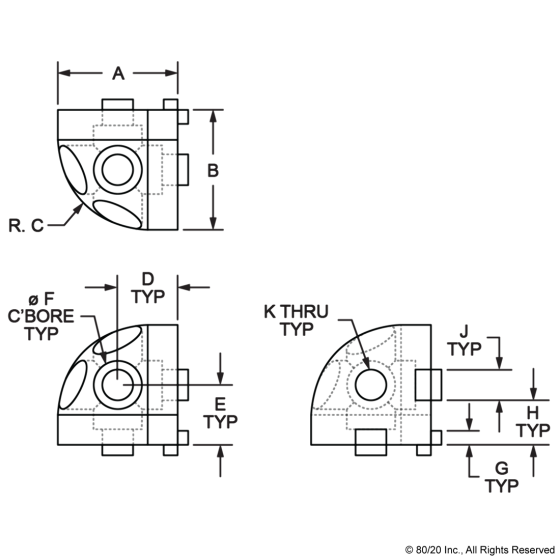

| A | 1.500” |
| B | 1.500" |
| C | 1.125" |
| D | .750" |
| E | .750" |
| F | .515" |
| G | .200" |
| H | .595" |
| J | .310" |
| K | .328" |
| Weight | 0.213000 |
