4487 - 10 & 15 Series Single Ball Catch

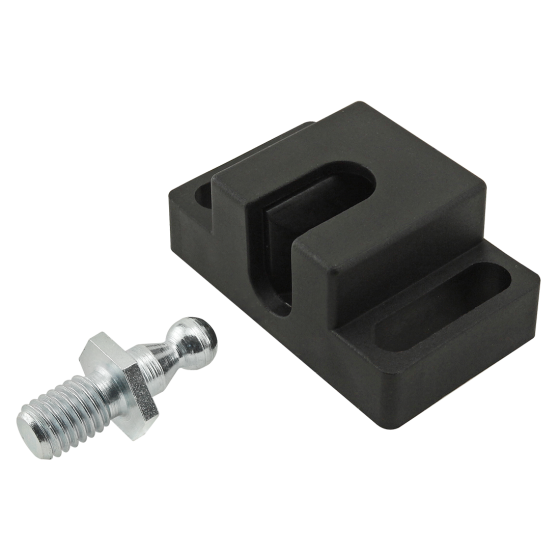

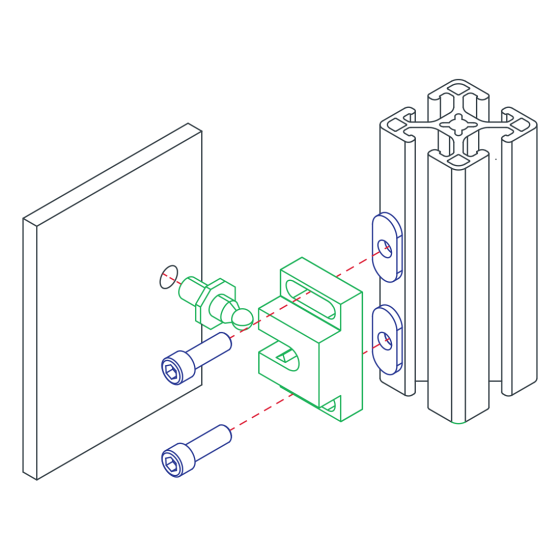

The single ball catch is comprised of a molded black fiberglass-reinforced nylon latch and a zinc-plated steel ball. It is a quick-latching method ideal for lightweight plastic panel doors. The steel ball can latch onto either the top or the front of the catch. The single ball catch requires a panel tap service to mount the steel ball to a plastic panel.
| Series | 10 Series, 15 Series |
| Material | Nylon PA |
| Process | Injection Molded |
| Color | Black |

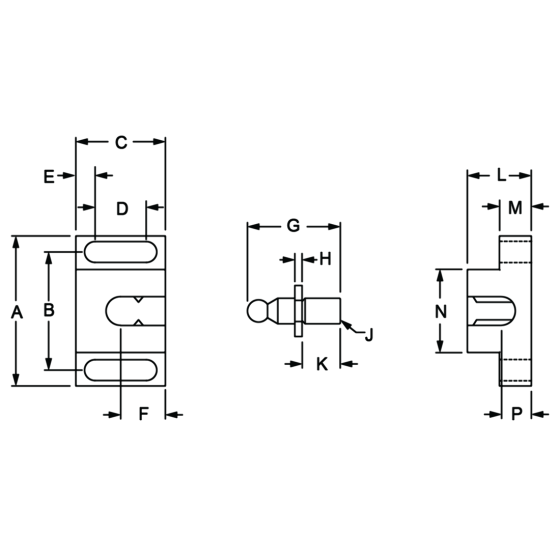

| A | 1.890" |
| B | 1.457" |
| C | 1.102" |
| D | .630" |
| E | .236" |
| F | .512" |
| G | 1.110" |
| H | .087" |
| J | M8 x 1.25 |
| K | .472" |
| L | .787" |
| M | .394" |
| N | .984" |
| P | .335" |
| Weight | 0.062000 |
