4489 - 15 Series 4 Hole - Zinc Hinge

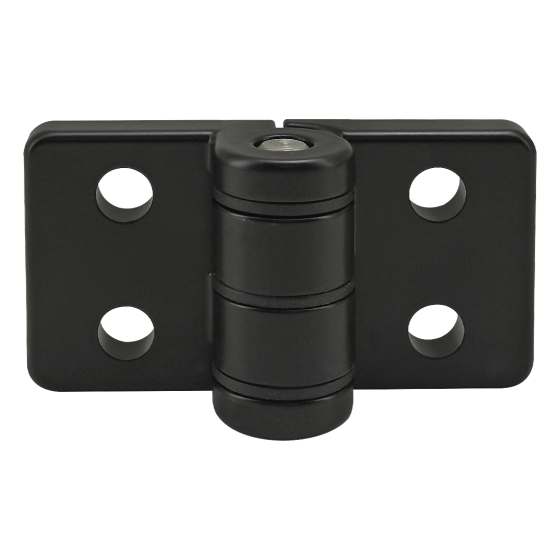

The 4 hole - zinc hinge is die-cast black powder-coated zinc with a stainless steel pin. It is a higher-strength hinge that is commonly used to connect doors and plastic panels to T-slot profiles.

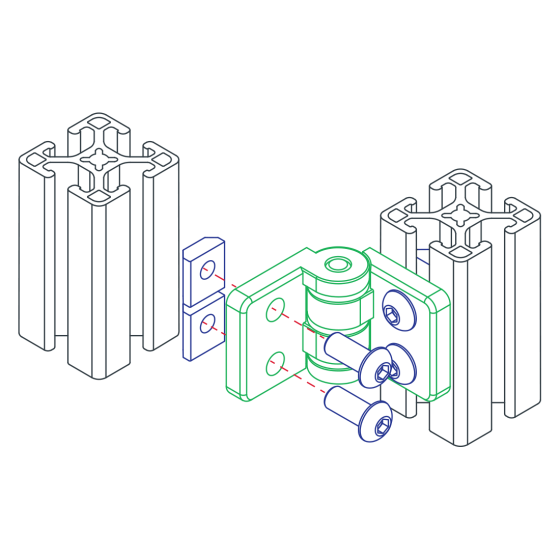

Suggested Hardware:
| Series | Part Number | Qty | Description |
|---|---|---|---|
 |
3114 | 2 |
5/16-18 x .750" Button Head Socket Cap Screw (BHSCS) |
|
3203 | 2 |
15 Series 5/16-18 Standard Slide-In T-Nut |
| Series | 15 Series |
| Material | Zinc |
| Grade | Die-Cast |
| Finish | Powder Coat |
| Color | Black |
| Process | Die Cast |

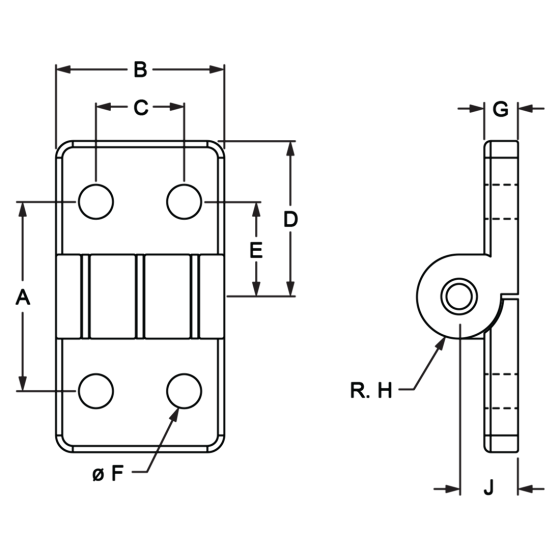

| A | 1.771" |
| B | 1.574" |
| C | .826" |
| D | 1.457" |
| E | .885" |
| F | .323" |
| G | .314" |
| H | .393" |
| J | .551" |
| Weight | 0.426000 |
