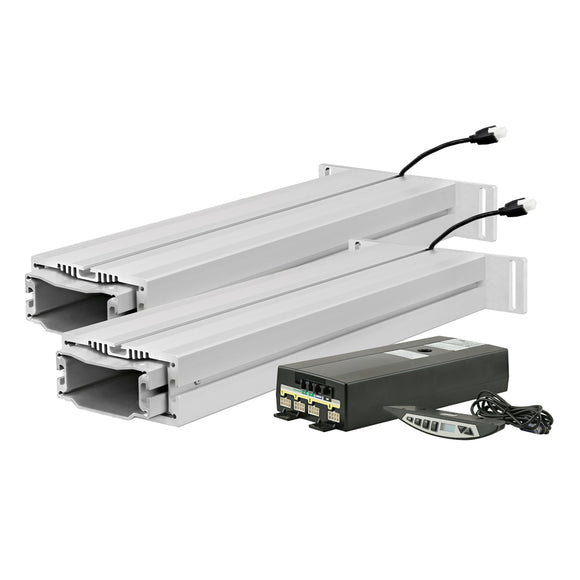

50021 - Electric Column Lift System - 2 Column Legs, Remote Keypad & Controller Box

SKU: 50021

$2,395.58 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

Works with 15, 40, 45 series T-slot profiles
Max load: 660 lbs (300 kg) per leg up to 3,300 lbs (8-legs)
Max stroke: 15.750 (400mm)
Retracted height of legs: 24.803 (630mm)
Extended height of legs: 40.551 (1030mm)
ISO Class 7 (US Cleanroom Class 10,000): full load
Integrated tilt sensor
PLC compatibility (see user manual for more information)
Includes 2 Column Legs, 3 programmable height settings, and a digital readout of current height
Requires base plates available for mounting to T-slot or caster (sold separately)

For technical details and images, please search for the product using the 80/20 interactive catalogue found here: https://catalogs.8020.net/80-20-Catalog-26/C/.

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
