6801 - 15 Series “T” Handle Linear Bearing Brake Kit-1
6801 - 15 Series “T” Handle Linear Bearing Brake Kit-2

6801 - 15 Series “T” Handle Linear Bearing Brake Kit

SKU: 6801

$6.94 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

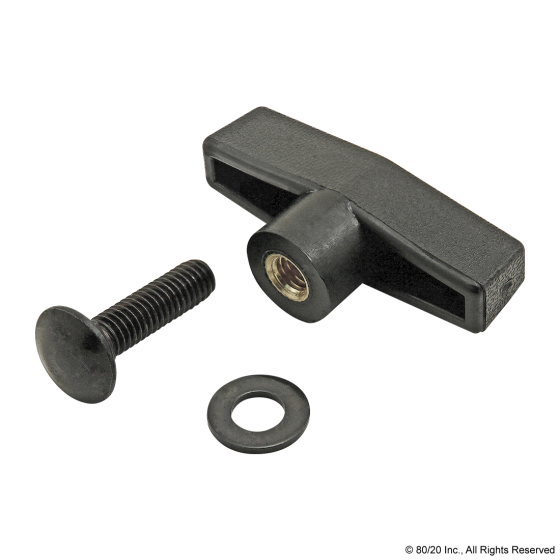

6801 - 15 Series “T” Handle Linear Bearing Brake Kit

The “T” handle linear bearing brake kit adds an adjustable stop to any brake-ready bearing by securing it into a semi-permanent position. It also adds a grip to aid with adjustments and provides secure lockdown capability for safety.

Series 15 Series
Material Steel/Polyproylene
Finish Zinc/Matte
Color Black

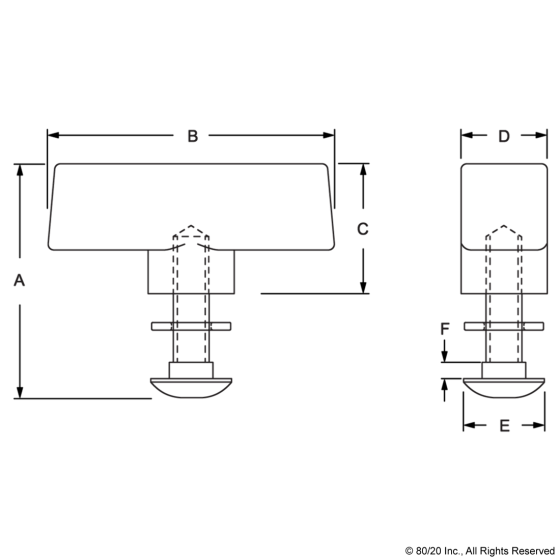

A 2.036"
B 2.491"
C 1.250"
D .750"
E .703"
F .150"
Weight 0.091000



Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can't offer you a refund or exchange. To be eligible for a return, please see our full return policy.
