EW-3ESB - 3" ESD Swivel Stem Caster with Brake

SKU: EW-3ESB

$16.95 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

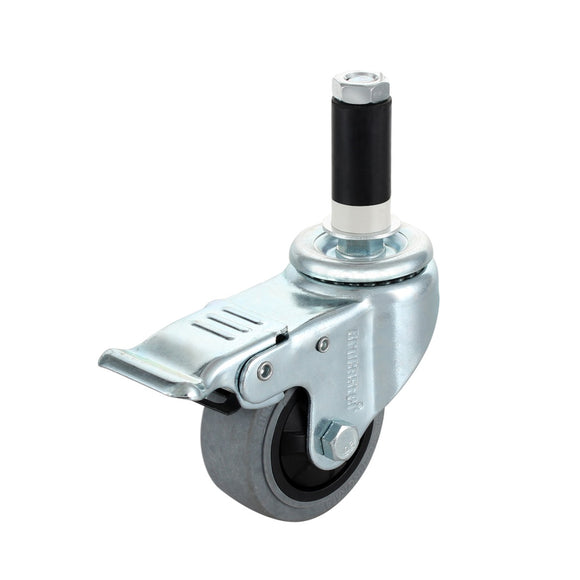

Electric conductivity (ESD) 3 inches swivel stem caster with pedal brake and a loading capacity of 150 pounds (68 kg) and a maximum speed of 2.5 mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place. Bolt size M12 (12 mm) Length 2 1/4" (57.15 mm)

Use the F-BUS component when this caster is used with the EP-96-ST pipe. All casters are equipped with a precision ball bearing. EW-3ESB has a non-electric conductivity version: W-3ESB

3 inches casters are made for:

  • Small trips (25 to 30 feet)
  • Infrequent use (10 to 20 times a day)
  • Carts weighting less than 400 pounds
  • Narrow carts (between 16 and 24 in. wide)

A Flexpipe Product

For technical details and images, please search for the product using the 80/20 interactive catalogue found here: https://catalogs.8020.net/80-20-Catalog-26/C/.

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems
