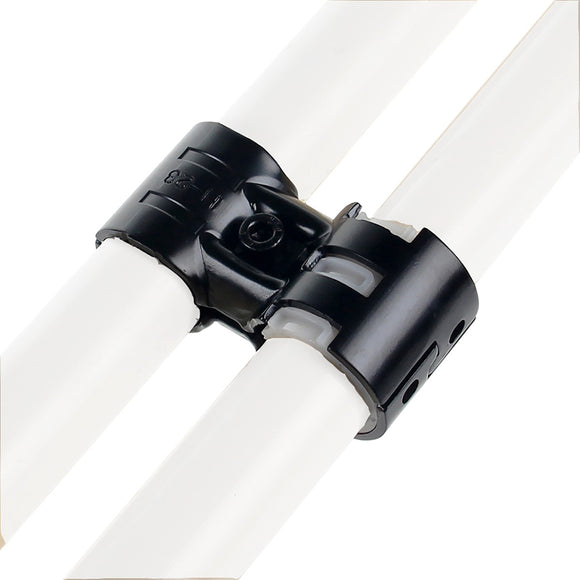

The HJ-24 is a metal connector set that creates a three-pipe intersection on two axes. This connector is the best option when you need to create separations without damaging the structural rigidity of some pipes. The hinge bracket AP-HINGE allows the connector to be swivel.
To create an HJ-24, you need to regroup two H-24 together with two M6-25B bolts and two M6-N nuts using one AP-HINGE. This connector is one of the easiest to connect along with the HJ-1. The HJ-24 is equipped with twelve striations for grip and six reinforcement holes for the construction of heavy-duty and structures and protection against frequent vibration. The HJ-24 is compatible with most 28mm pipe systems and equivalent joints.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.
A Flexpipe Product
For technical details and images, please search for the product using the 80/20 interactive catalogue found here: https://catalogs.8020.net/80-20-Catalog-26/C/.
