W-4EF - 4" Rigid Stem Caster

SKU: W-4EF

$17.29 CAD

Orders ready to ship in approx. 2-4 business days from ordering, note longer lead time for black anodize.

***Note: For items shipped from the USA to Canada, all brokerage and duty fees are included in the total cost.***
Description Customs Cuts and Machining CAD Models Returns

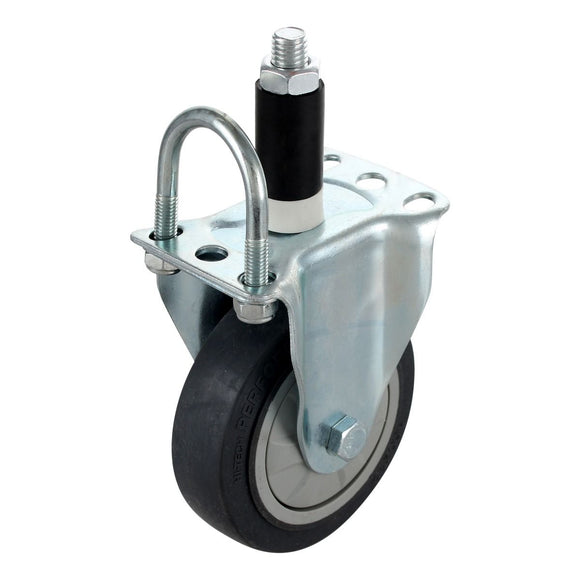

The 4 inch rigid stem caster has a loading capacity of 250 pounds (113 kg) and a maximum speed of 2.5Mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place. You will need to secure the wheel by placing it on a connector with WF-U5/16 U-Bolt (included with the caster). Bolt M12 (12 mm) Length 2 1/4" (57.15 mm). All casters are equipped with a precision ball bearing.

4 inch casters are made for:

  • Longer trips (100 feet maximum)
  • Higher frequency trips (100 to 150 times a day)
  • Carts weighting more than 400 pounds
  • Larger carts (greater than 24 in. wide and 48 in. long)

W-4EF has an electric conductivity version (ESD): EW-4EF

A Flexpipe Product

For technical details and images, please search for the product using the 80/20 interactive catalogue found here: https://catalogs.8020.net/80-20-Catalog-26/C/.

Please contact sales@rmmc.net for quotes for custom cutting and machining

Access CAD models through the link here: Free Drawing Files|CAD Libraries|80/20 T-slot Building Systems

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can't offer you a refund or exchange. To be eligible for a return, please see our full return policy.
